Name: test
Brand: HOMINTEC
Price: 9999.00 USD
Availability: OutOfStock

1 1

HOMINTEC

test

$9,999.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

Performance

≤1.4W/m²K

Air Tightness

Level 5

Water Tightness

Level 4

Wind Load Resistance

Level 7

Acousic Performance

Level 4

Configuration:

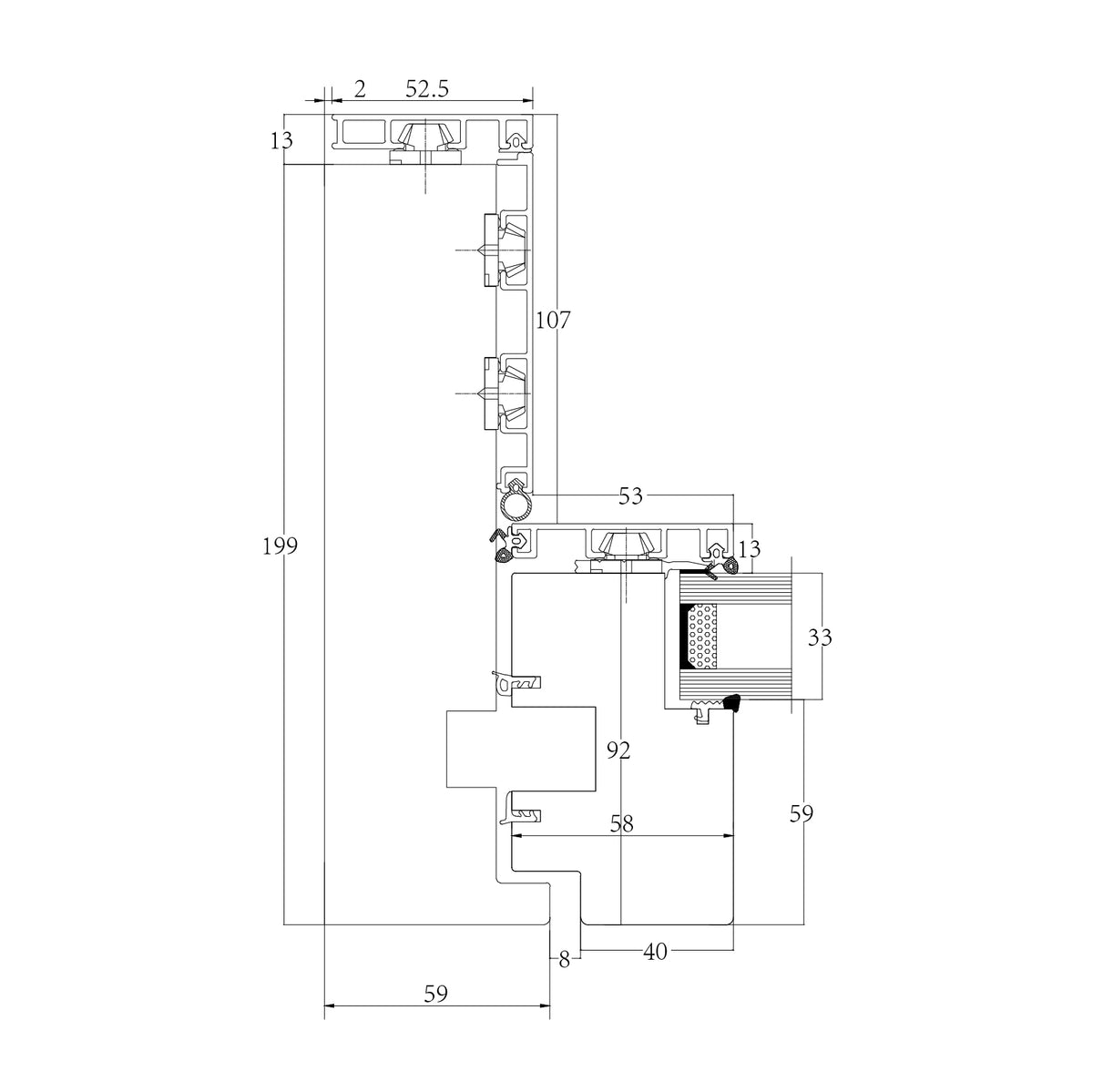

Wood frame thickness

199 mm

Aluminum frame thickness

12 mm

ABS plastic

Overall thickness of frame

215mm (wood+ aluminum + lock gap）

Aluminum spray coating

Powder/ Fluorocarbon

Aluminum surface effect

Frosted or flat

Aluminum wall thickness

High-precision 6060-T66 profile, 1.8~2.5mm

Integrated wood

Standard American oak/American cherry wood/Optional North American black walnut/ Brazilian rosewood/Burmese black line teak/Burmese rosewood

Standard window hardware

Hardware handle standard

German "HOPPE" single-sided handle, handle height fixed, length 1020

Standard glazing configuration

CSG or Xinyi original glass three-layer, two-cavities glass, or laminated insulating glass(thickness 33mm), argon gas, a warm edge spacer, and a single LOW-E

Main sealing strip

Main seal: EPDM material Jiangyin "Haida" automotive grade

Glass inside and outside: soft and hard co-extruded rubber strip, Jiangyin "Haida" automotive grade

Paints and coatings

Germany‘s “lmpra” environmentally friendly water-based paint has a VOC index of less than 75 g/L.

Screen window

If screen windows are selected

Profile properties

Adhesive strips

Grid

Opening instructions

Single-leaf lifting and sliding door

Size description

Aspect ratio (1:2); the maximum size of the open fan is not allowed to exceed 6 m².

Dimensions

Bottom sill

Note

Falling water system

Waterproofing system

Façade shading

Top sunshade

Sun room style

Installation method

Window opening range

Door opening range

Corner joint

Simulated divided lites

Glass grating

Recommended size

Weight of single door

Weight of single sash

Opening range

Tip

Maximum load

Including screen

Single leaf weight

Varnish

Provider

Mesh sreen

Aluminum profile

Threshold height

Personalized

Handle Color

Brown Silver, White, Black

External Aluminum Color

Customized according to needs

Inner Wood Color

Customized accordingly to needs

Handles with locks

For top-hung windows, priority option

Handle Height Customization

Door lock

Top-hung sliding door

Hinge

Smart door lock

Electric opening

Smart remote control or facial recognition

Electric handle

German Hautau

Glass Blinds

Manual blinds or electric blinds

Glass Beauty Bars

Monochrome grid bars 18*9; Antique Chinese style monochrome grid bars 15*12; Two-tone grid bars 18*11

Glass Outer Grille

Three layers: 20mm wide style grille+ glass inner bending strip (black color)

The window can be equipped with

The door body can be equipped with

Shading

Skylight system

LED light

Multiple slope roofs

Grilles between glass

Simulated divided lites+Grillesbetween glass

Corner window

Wood color

Opening

Drainage aluminum

Interiror aluminum color

Threshold aluminum
