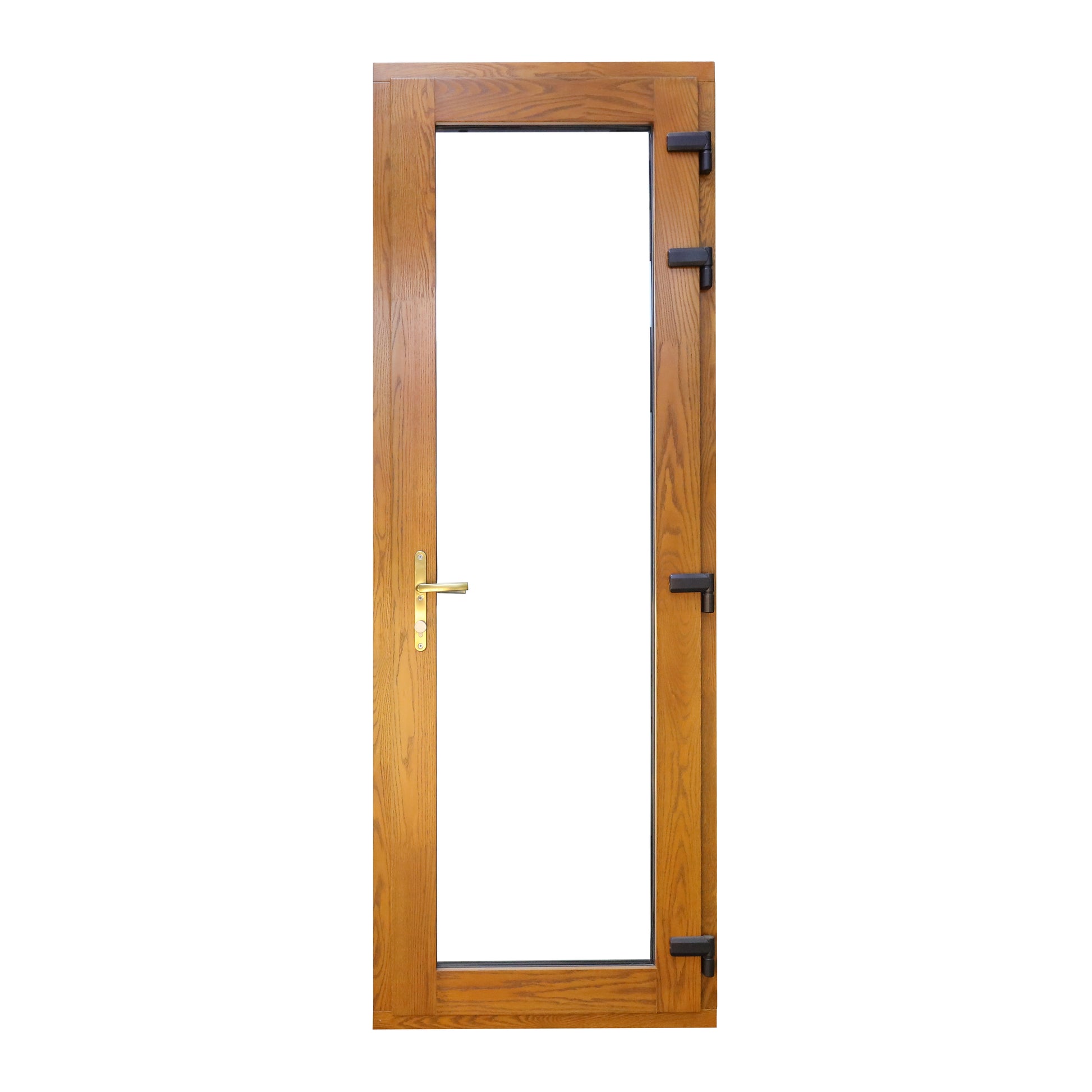

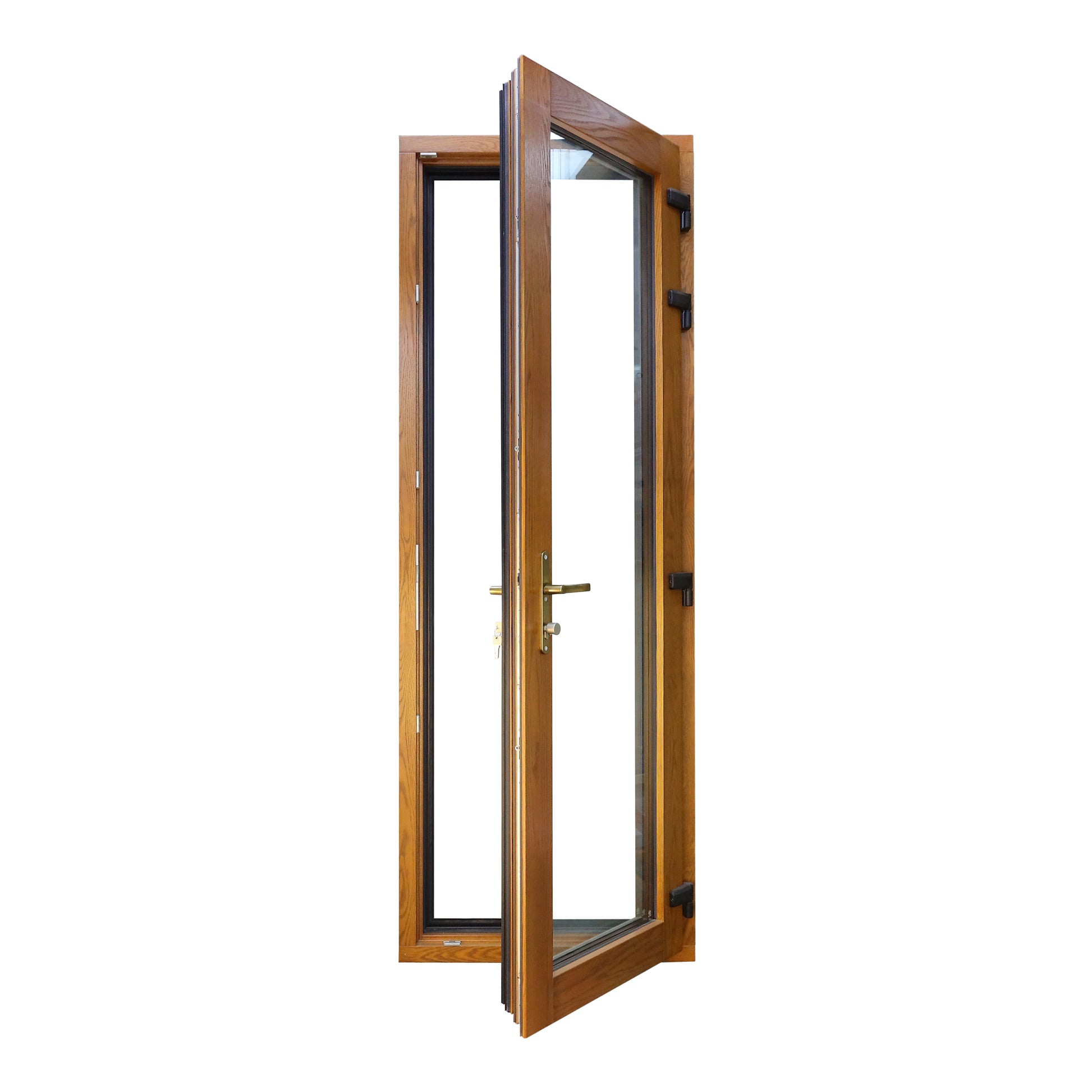

HOMINTEC PASSIVE-HA120 Aluminum clad wood Passive door

Name: HOMINTEC PASSIVE-HA120 Aluminum clad wood Passive door
Brand: HOMINTEC
Availability: InStock

PHl certified by the German Passive House Institute, with excellent thermal insulation and airtightness performance.The whole frame is seamlesslysealed with rubber strips. German Q-Lon strips block cold and heat conduction, provide strong thermal insulation,and save energy.

View full details

Contact form

Performance

≤0.8W/m²K

Air Tightness

Level 8

Water Tightness

Level 6

Wind Load Resistance

Level 9

Acousic Performance

Level 6

Configuration:

Wood frame thickness

68 mm

Aluminum frame thickness

16 mm

ABS plastic

33 mm

Overall thickness of frame

120mm ( wood+ aluminum + ABS+ lock gap)

Aluminum spray coating

Powder/ Fluorocarbon

Aluminum surface effect

Frosted or flat

Aluminum wall thickness

high-precision 6060-T66 profile, 1.8~2.5mm

Integrated wood

Standard Siberian pine or red pine/ Optional American oak/American cherry wood/ North American black walnut/Brazilian rosewood/Burmese black line teak/ Burmese rosewood

Standard window hardware

Hardware handle standard

German "HOPPE"/ Optional: German FSB

Standard glazing configuration

CSG or Xinyi original glass, three-layer two-cavities glass or laminated insulating glass(thickness 39/51 mm), argon gas + warm edge spacer + double silver LOW-E

Main sealing strip

<p>1.Standard Schlegel Q-LON-wrapped sealing strip imported from Germany&nbsp;</p><p>2.Waterproof main seal: seamless welded rubber strip, Jiangyin "Haida" automotive grade&nbsp;</p><p>3.Inner glass and outer glass: soft and hard co-extruded rubber strip, Jiangyin "Haida" automobile grade</p>

Paints and coatings

Germany's "Impra" environmentally friendly water-based paint has a VOC index of less than 75 g/L

Screen window

If screen windows are selected

Profile properties

Adhesive strips

Grid

Opening instructions

Size description

Dimensions

Bottom sill

Sill height 90mm

Note

Falling water system

Waterproofing system

Façade shading

Top sunshade

Sun room style

Installation method

Window opening range

Door opening range

Corner joint

Simulated divided lites

Glass grating

Recommended size

Weight of single door

Weight of single sash

Opening range

Tip

Maximum load

Including screen

Single leaf weight

Personalized

Handle Color

Brown, Silver, White, Black

External Aluminum Color

Customized according to needs

Inner Wood Color

Customized according to needs

Handles with locks

For top-hung windows, priority option

Handle Height Customization

Can be lowered by 100~200mm

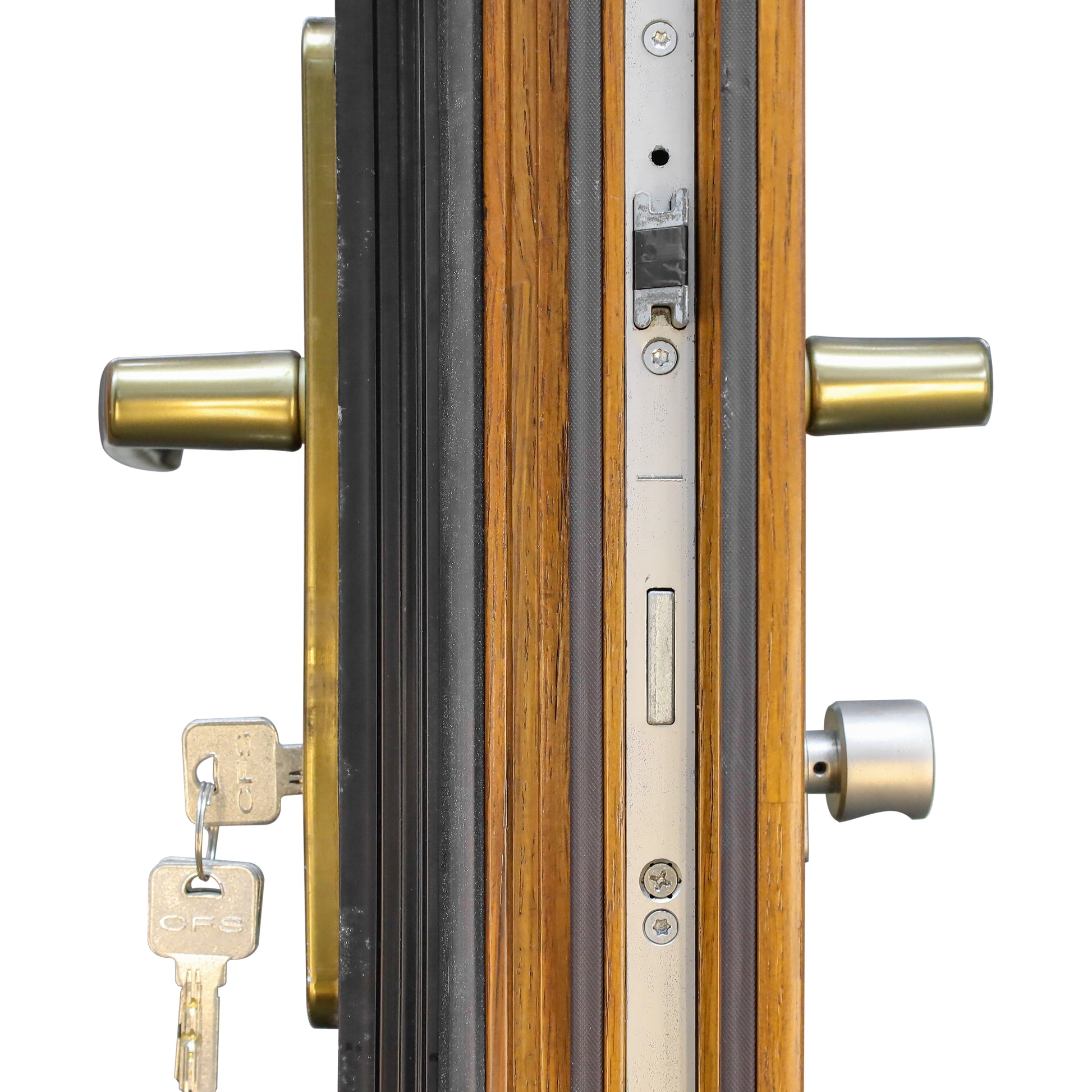

Door lock

Double-sided inner handwheel lock with lock or double-sided handle inner handwheel lock

Top-hung sliding door

Double-sided inner handwheel lock; double-sided handle inner handwheel lock (outdoor handle is flat)

Hinge

ltalian original AGB cylindrical door hinge

Smart door lock

Electric opening

Electric handle

Glass Blinds

Manual blinds or electric blinds

Glass Beauty Bars

Monochrome grib bars 18*9; Antique Chinese style monochrome grid bars 15*12; Two-tone grid bar 18*11

Glass Outer Grille

Three layers: 20mm wide style grille+ glass inner bending strip (black color)

The window can be equipped with

The door body can be equipped with

Shading

Skylight system

LED light

Multiple slope roofs

Grilles between glass

Simulated divided lites+Grillesbetween glass

Corner window
