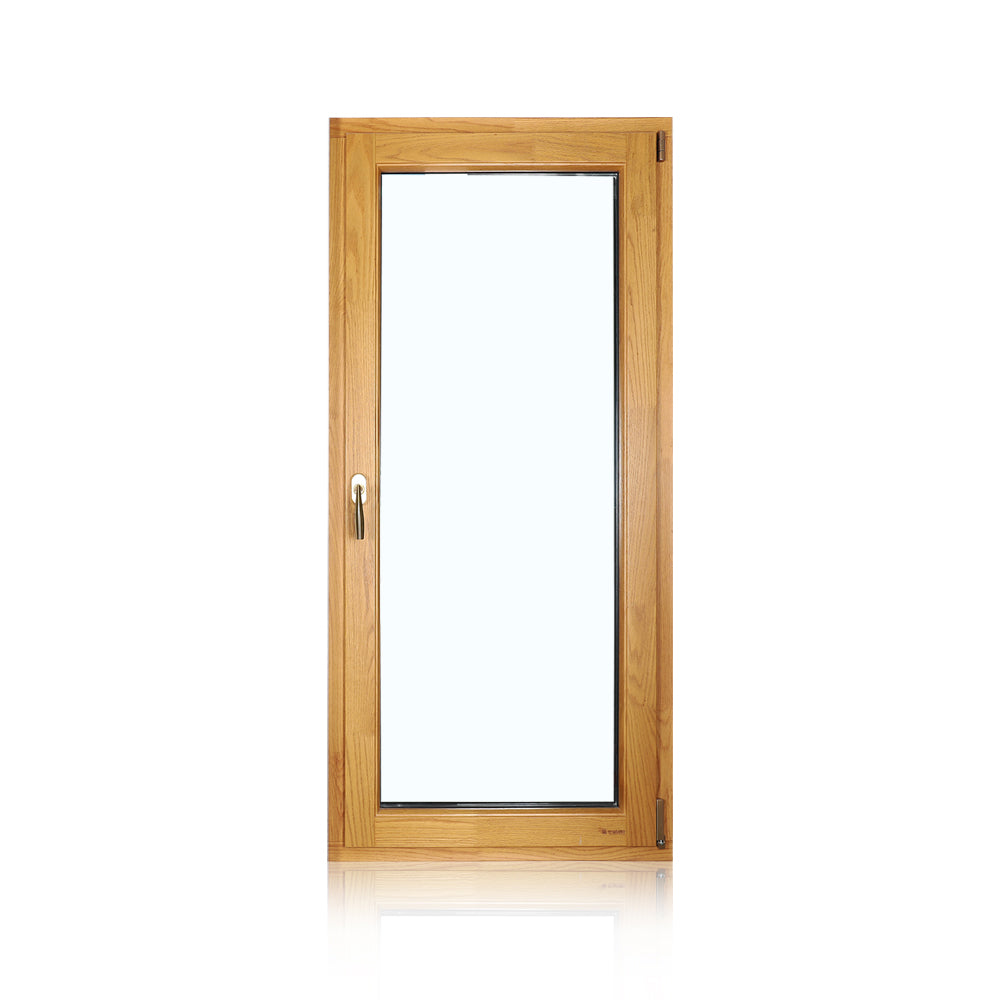

HOMINTEC HN100 Aluminum clad wood inward opening door

Name: HOMINTEC HN100 Aluminum clad wood inward opening door
Brand: HOMINTEC
Availability: InStock

The hardwares are imported from Germany, features an anti-theft level equivalent to the German RC2 standard.lt boasts superior corrosionresistance and pressure resistance, making it extremely durable andsecure.As a result, it is highly popular among consumers.

View full details

Contact form

Performance

≤1.2~1.4W/m²K

Air Tightness

Level 7

Water Tightness

Level 5

Wind Load Resistance

Level 8

Acousic Performance

Level 5

Configuration:

Wood frame thickness

78 mm

Aluminum frame thickness

18 mm

ABS plastic

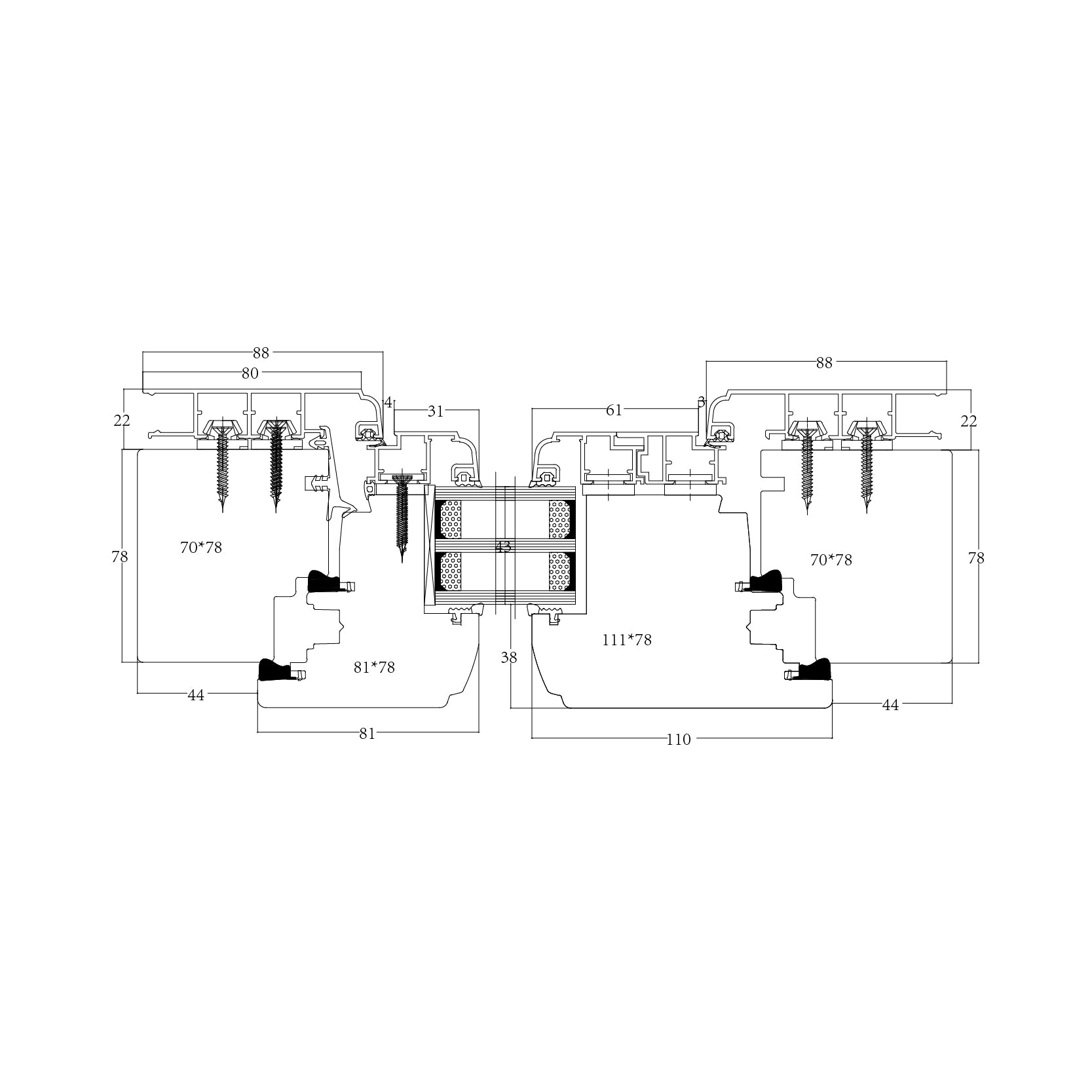

Overall thickness of frame

100mm (wood+ aluminum + lock gap)

Aluminum spray coating

Powder/ fluorocarbon

Aluminum surface effect

Frosted or flat

Aluminum wall thickness

High-precision 6060-T66 profile, 1.8~2.5mm

Integrated wood

Standard American oak/ American cherry wood/ Optional North American black walnut/ Brazilian rosewood/ Burmese black line teak/ Burmese rosewood

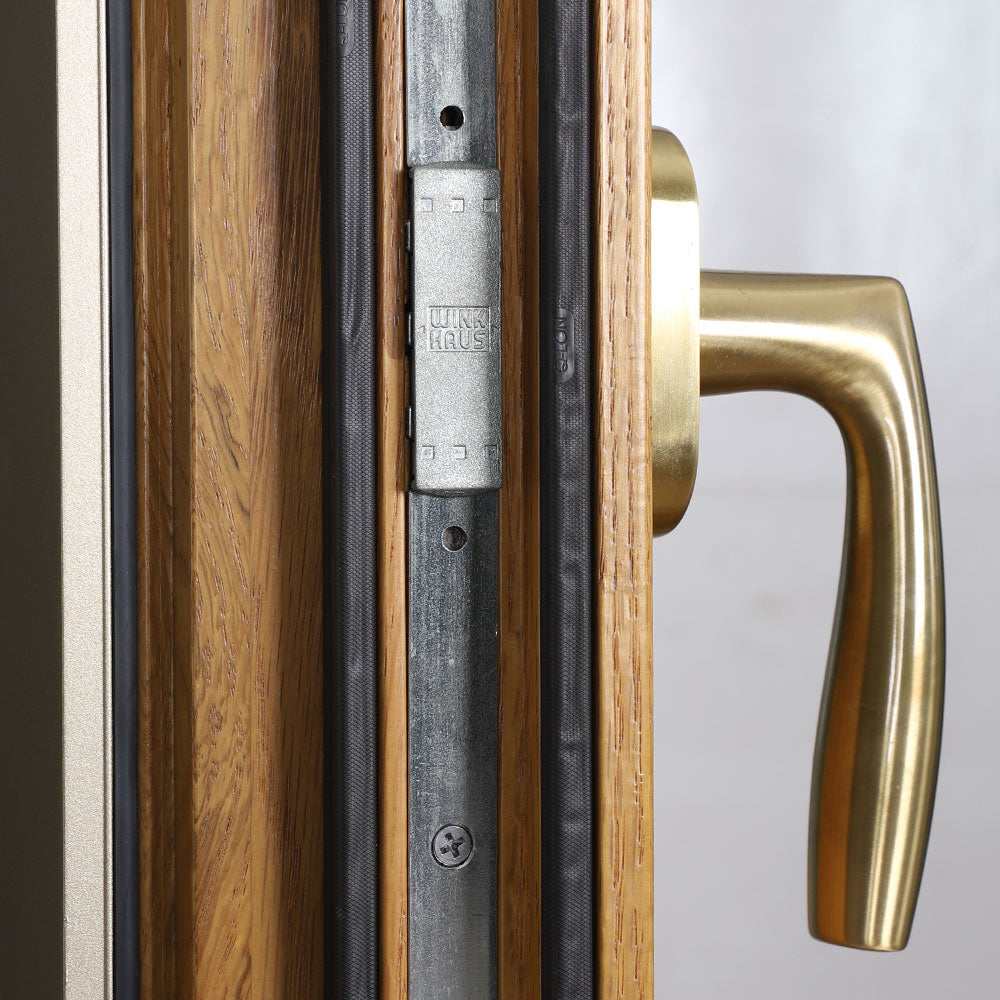

Standard window hardware

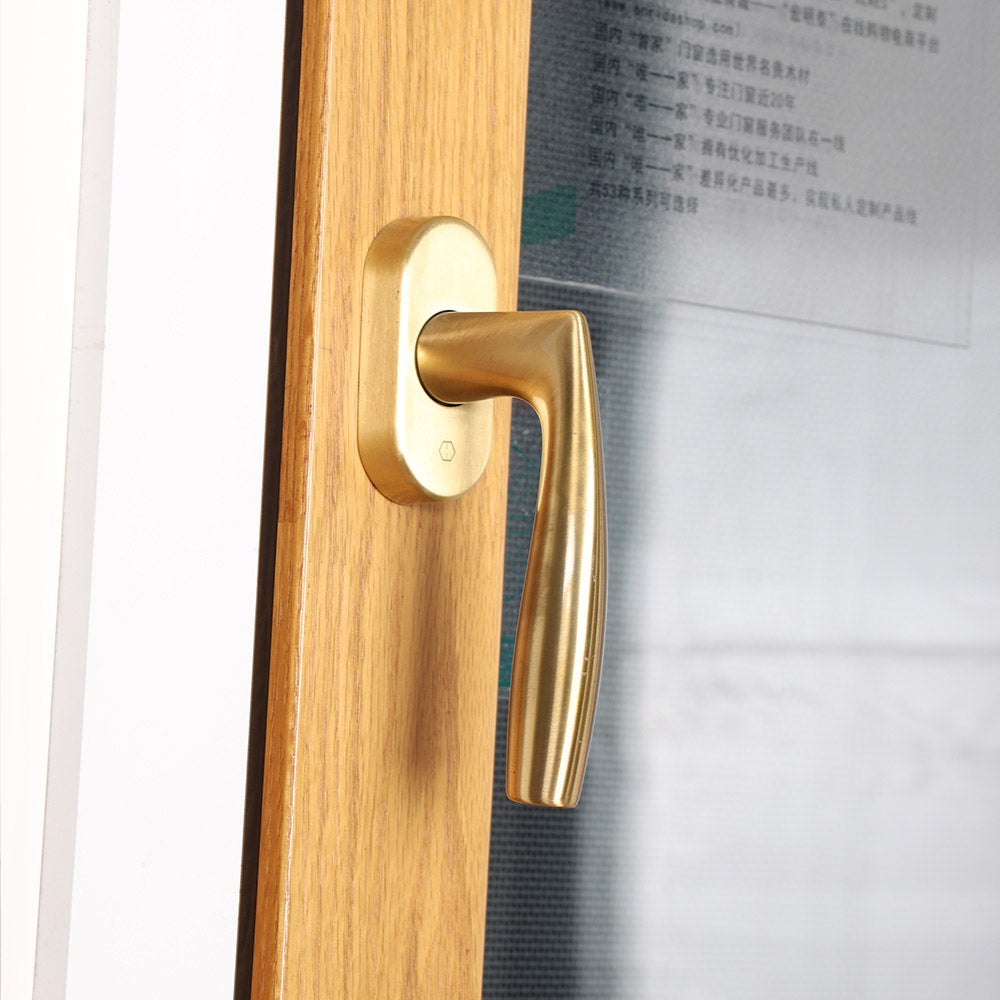

Hardware handle standard

German "HOPPE"/ Optional: German FSB

Standard glazing configuration

CSG or Xinyi original glass, three-layer, two-cavities glass, or laminated insulating glass (thickness 33/34 mm), argon gas, a warm edge spacer, and a single LOW-E

Main sealing strip

Standard Schlegel Q-LON wrapped sealing strip imported from Germany.

Waterproof main seal: seamless welded rubber strip, Jiangyin "Haida" automotive grade.

Inner glass and outer glass: soft and hard co-extruded rubber strip, Jiangyin "Haida" automobile grade.

Paints and coatings

Germany's "Impra" environmentally friendly water-based paint has a VOC index of less than 75g/L

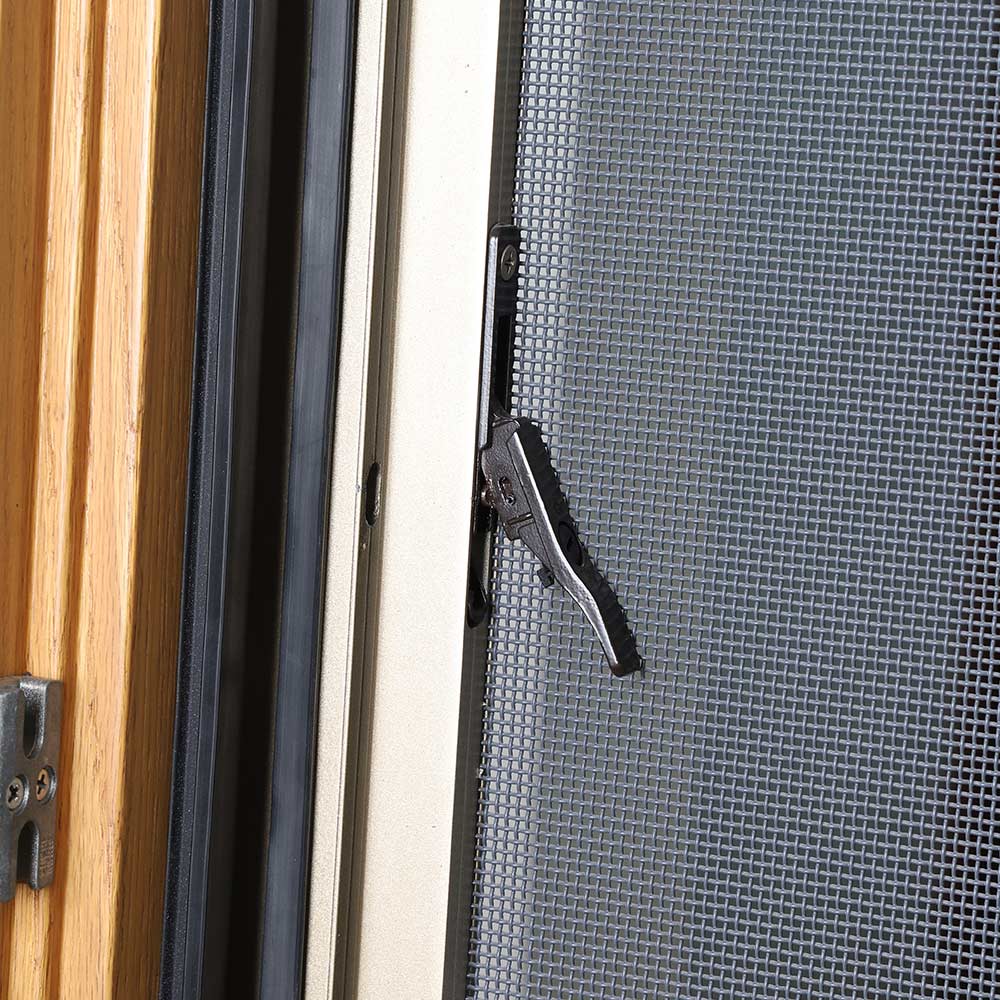

Screen window

If screen windows are selected

Profile properties

Adhesive strips

Grid

Opening instructions

Size description

Dimensions

Bottom sill

Sill height: 90mm; Optional: low sill, sill height 32mm

Note

Falling water system

Waterproofing system

Façade shading

Top sunshade

Sun room style

Installation method

Window opening range

Door opening range

Corner joint

Simulated divided lites

Glass grating

Recommended size

Weight of single door

Weight of single sash

Opening range

Tip

Maximum load

Including screen

Outward-opening gold steel screen door ( screen door cannot be realized for doors without bottom sill, double-sided handle and double-sided lock, screen door handle can be adjusted by 250mm)

Single leaf weight

Personalized

Handle Color

Brown, Silver, White, Black

External Aluminum Color

Customized according to needs

Inner Wood Color

Customized according to needs

Handles with locks

For top-hung windows, priority option

Handle Height Customization

Can be lowered by 100~200mm

Door lock

Double-sided inner handwheel lock with lock or double-sided handle inner handwheel lock;

Top-hung sliding door

Double-sided inner handwheel lock; double-sided handle inner handwheel lock (outdoor handle is flat)

Hinge

Roto 3D Door Hinge

Smart door lock

Jiadebao smart fingerprint

Electric opening

Electric handle

Glass Blinds

Manual blinds or electric blinds

Glass Beauty Bars

Monochrome grib bars 18*9; Antique Chinese style monochrome grid bars 15*12; Two-tone grid bar 18*11

Glass Outer Grille

Three layers: 20mm wide style grille+ glass inner bending strip (black color)

The window can be equipped with

The door body can be equipped with

Shading

Skylight system

LED light

Multiple slope roofs

Grilles between glass

Simulated divided lites+Grillesbetween glass

Corner window
