HOMINTEC 90HC Aluminum clad wood external opening door

Name: HOMINTEC 90HC Aluminum clad wood external opening door
Brand: HOMINTEC
Availability: InStock

Enhances the overall load-bearing capacity and minimizes the risk of external forces impacting the opening of the glass window sash. The outward-opening design is space-saving, making it convenient for indoor ventilation.

View full details

Contact form

Performance

≤1.5~1.7W/m²K

Air Tightness

Level 5

Water Tightness

Level 4

Wind Load Resistance

Level 7

Acousic Performance

Level 4

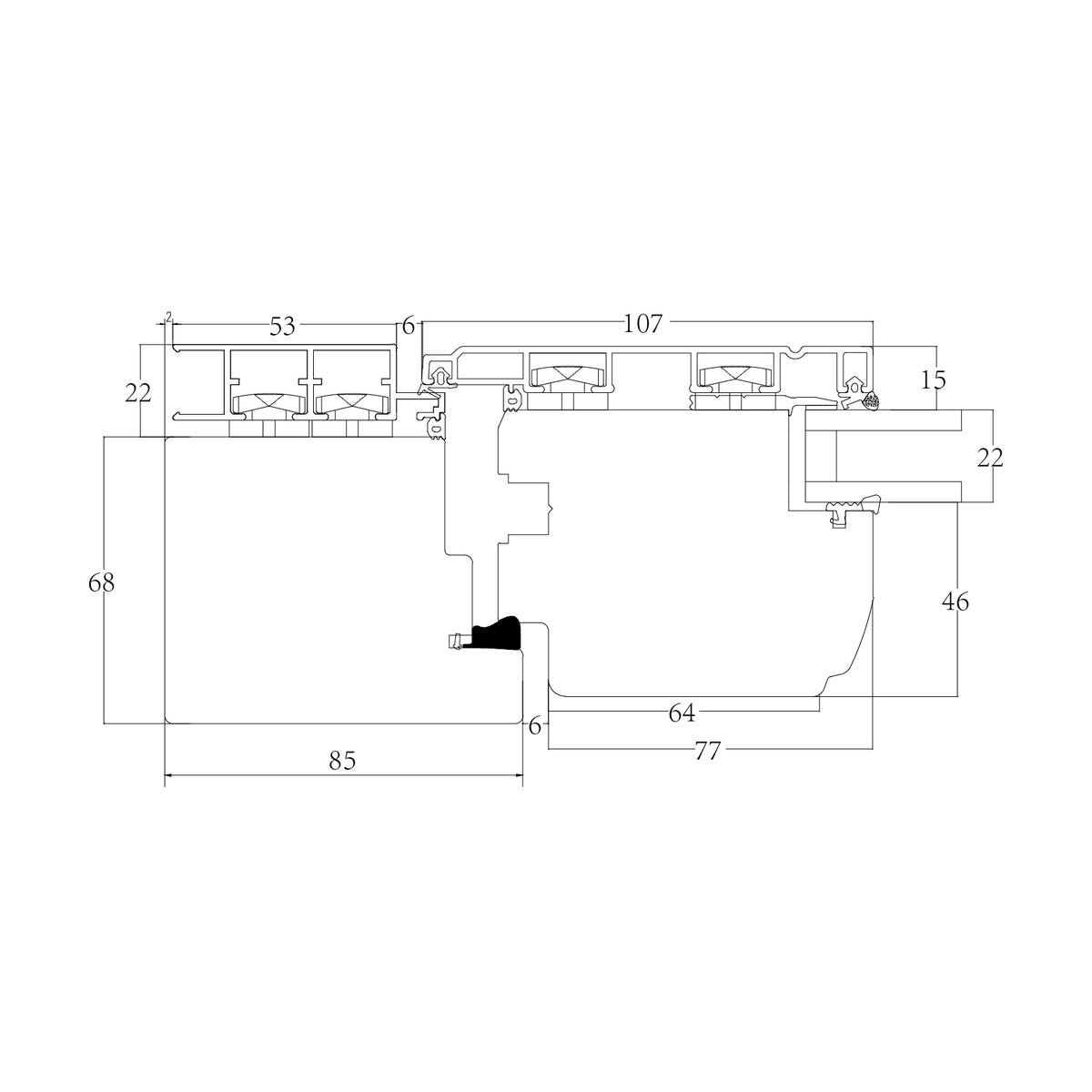

Configuration:

Wood frame thickness

68 mm

Aluminum frame thickness

18 mm

ABS plastic

Overall thickness of frame

90mm (wood+ aluminum + lock gap)

Aluminum spray coating

Powder/ Fluorocarbon

Aluminum surface effect

Frosted or flat

Aluminum wall thickness

High-precision 6060-T66 profile, 1.8~2.5mm

Integrated wood

Standard American oak/American cherrywood/Optional North American black walnut/ Brazilianrosewood/Burmese black line teak/ Bummese rosewood

Standard window hardware

Hardware handle standard

German "HOPPE", optional: German FSB

Standard glazing configuration

CSG or Xinyi original sheet, outward-opening window (thickness 22/30/39mm), argon gas, warm edge spacer, and single LOW-E

Main sealing strip

Main seal: EPDM material Jiangyin "Haida" automotive grade

Glass inside and outside: soft and hard co-extruded rubberstrip, Jiangyin "Haida" automotive grade

Inner glass and outer glass: soft and hard co-extruded rubber strip, Jiangyin "Haida" automobile grade.

Paints and coatings

Germany's“lmpra"environmentallyfriendly water-based paint has a VOC index of less than 75 g/L.

Screen window

If screen windows are selected

Profile properties

Adhesive strips

Grid

Opening instructions

Size description

Dimensions

Bottom sill

Note

1. The MVD lock cannot be added if the fan height is lower than2036; 2. Calculation area: if a single door is less than 1.8 square meters,it will be calculated as 1.8 square meters;3. Bottom sill: sill height 90mm. Optional: low sill, sill height23mm. 4. For external-opening double doors, heightening materials arenot suitable, and the sub-fans must not be smaller than 450mm;when heightening materials are used, the sub-fans must not besmaller than 590mm.

Falling water system

Waterproofing system

Façade shading

Top sunshade

Sun room style

Installation method

Window opening range

Door opening range

Corner joint

Simulated divided lites

Glass grating

Recommended size

Weight of single door

Weight of single sash

Opening range

Tip

Maximum load

Including screen

Single leaf weight

Personalized

Handle Color

Brown, Silver, White, Black

External Aluminum Color

Customized according to needs

Inner Wood Color

Customized according to needs

Handles with locks

For top-hung windows, priority option

Handle Height Customization

Can be lowered by 100~200mm

Door lock

Double-sided inner handwheel lock with lock or double-sided handle inner handwheel lock

Top-hung sliding door

Hinge

Smart door lock

Jiadebao smart fingerprint

Electric opening

Electric handle

Glass Blinds

Manual blinds or electric blinds

Glass Beauty Bars

Monochrome grib bars 18*9; Antique Chinese style monochrome grid bars 15*12; Two-tone grid bar 18*11

Glass Outer Grille

Three layers: 20mm wide style grille+ glass inner bending strip (black color)

The window can be equipped with

The door body can be equipped with

Shading

Skylight system

LED light

Multiple slope roofs

Grilles between glass

Simulated divided lites+Grillesbetween glass

Corner window
